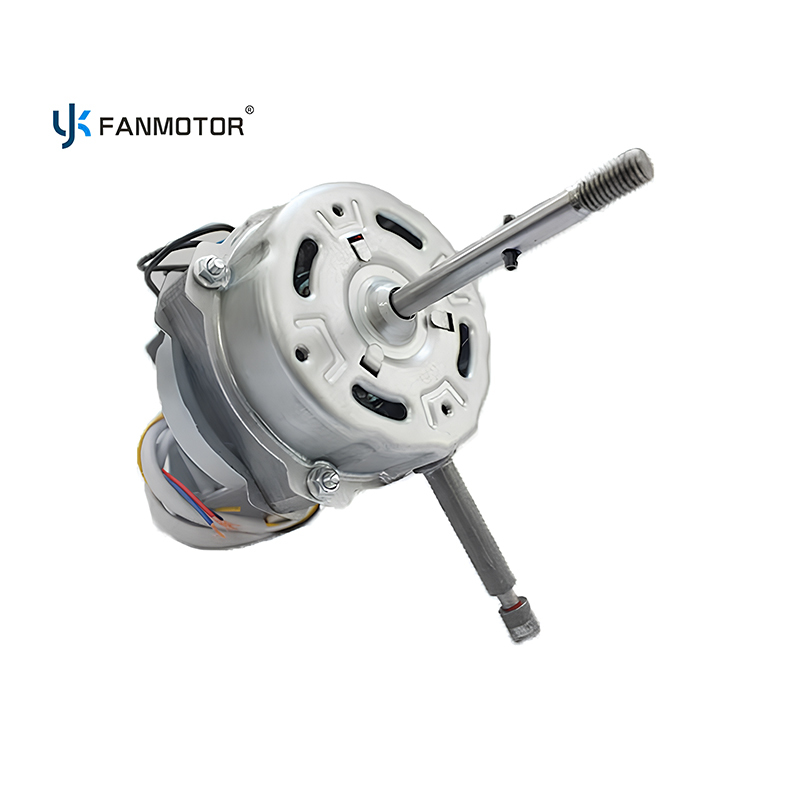

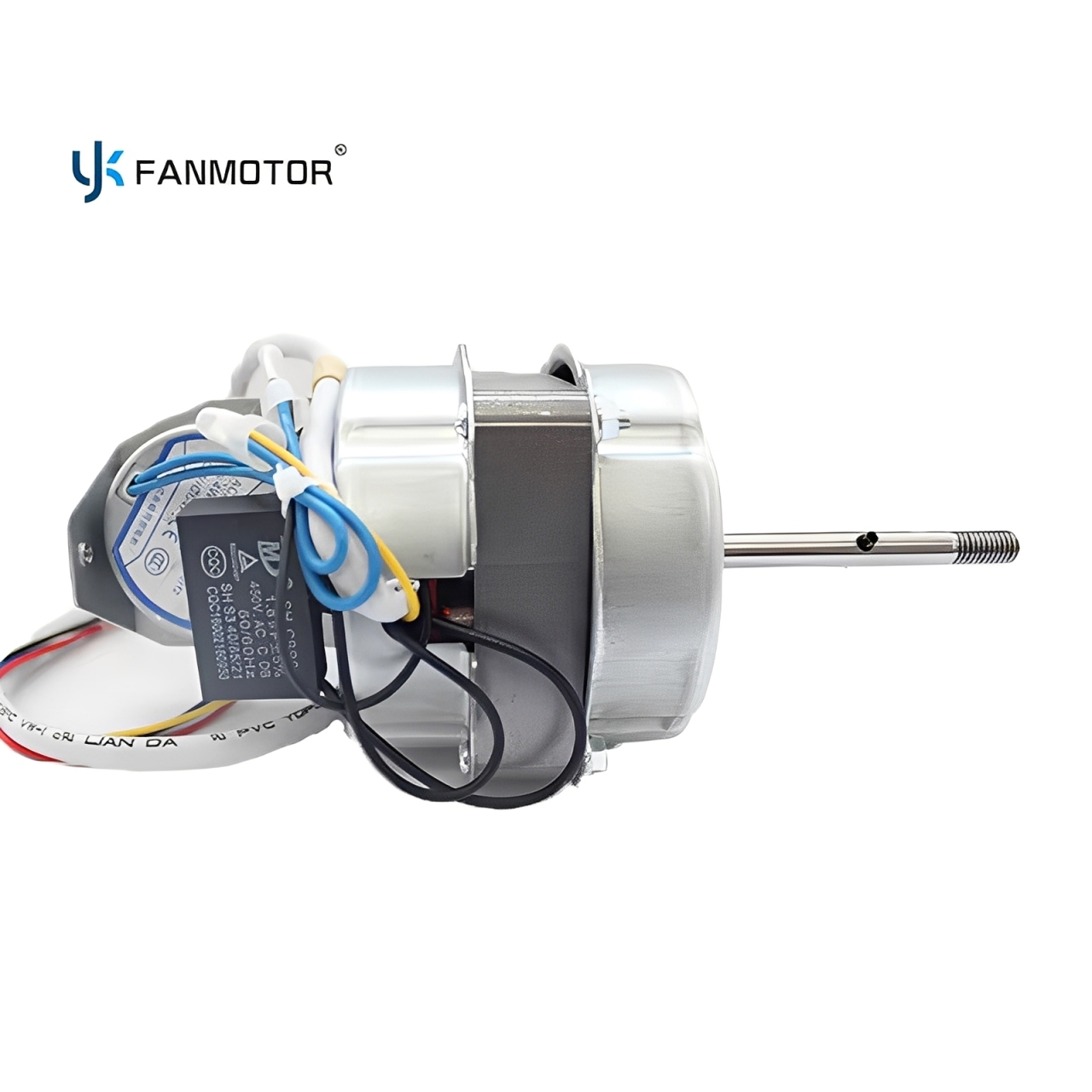

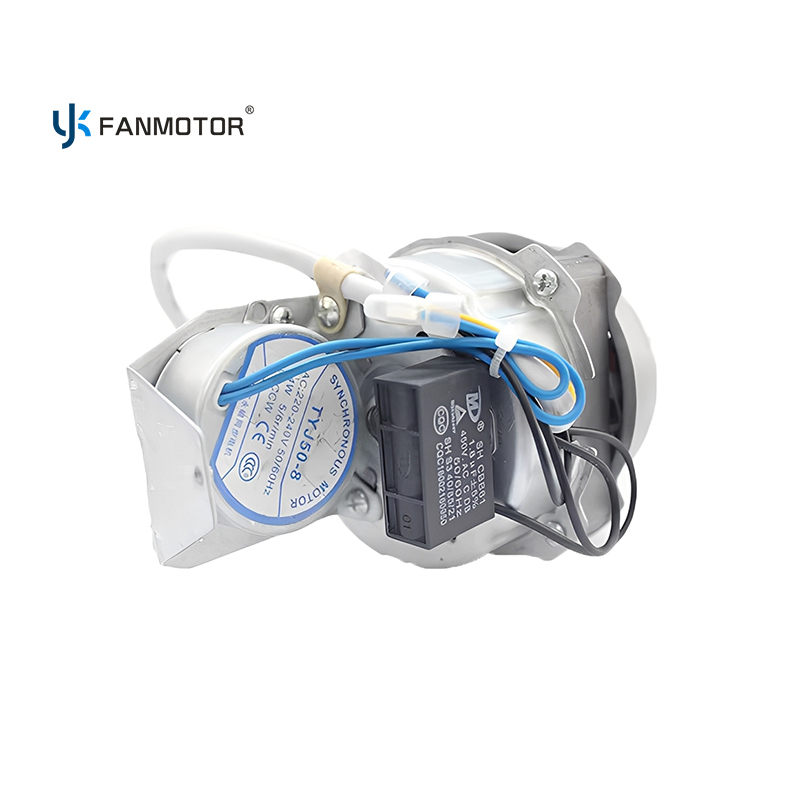

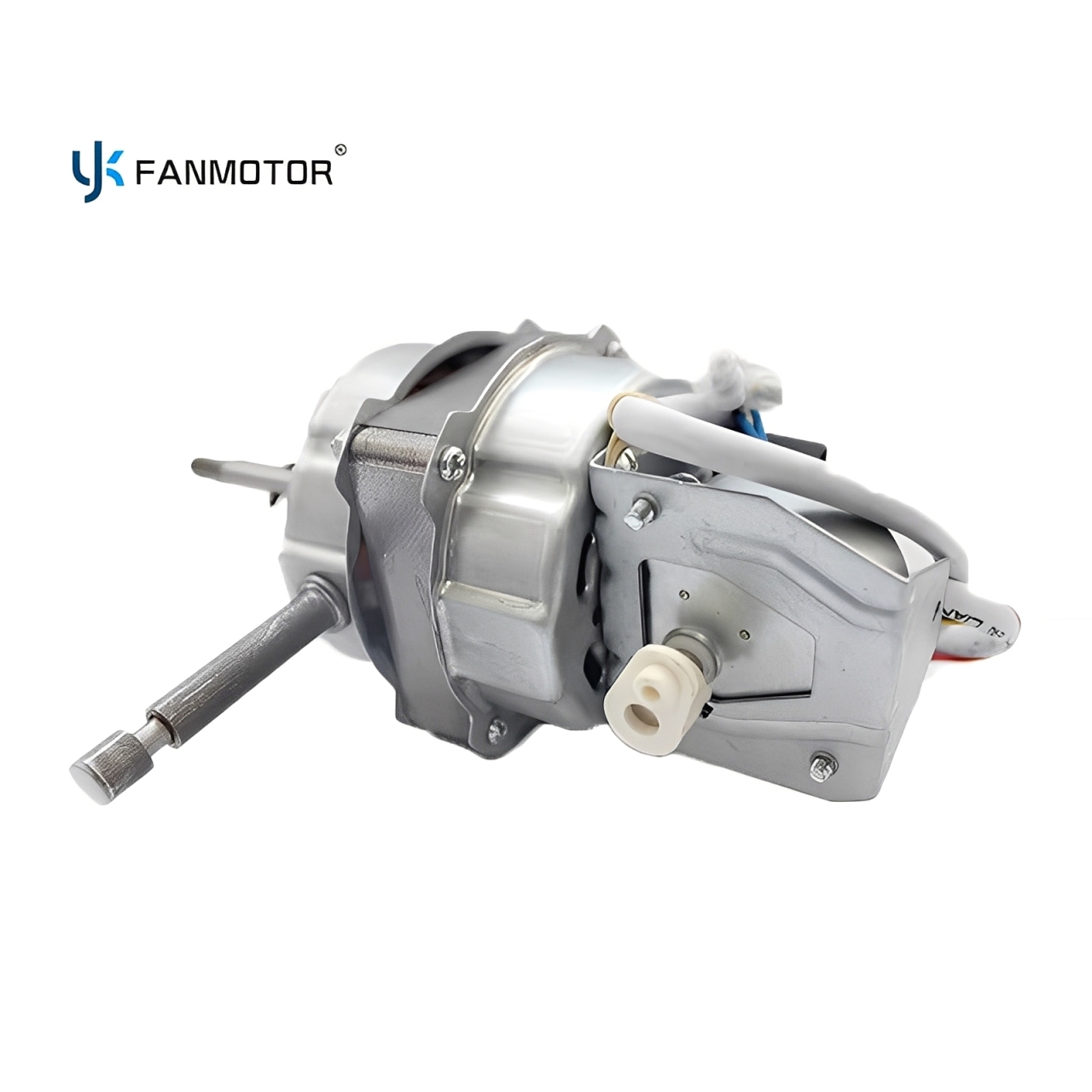

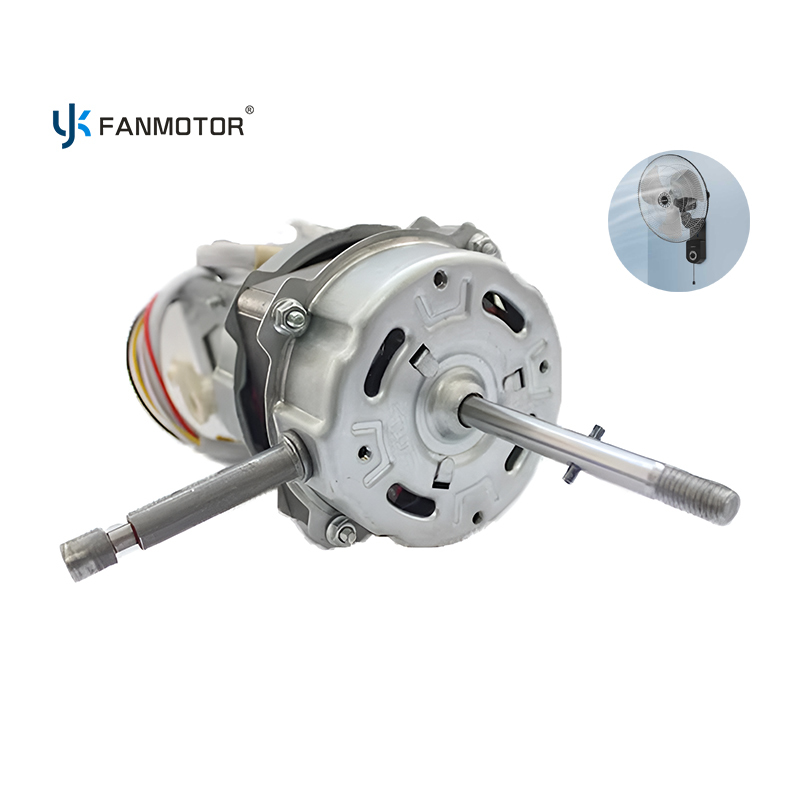

High Efficiency AC Electric Wall Fan Motor 3-Speed Capacitor‑Start

No.1601640625712
  • 3‑speed wall fan motor: 650 / 850 / 1150 RPM (Low / Mid / High)
  • 220V AC, 50/60Hz, 60W for common household wall fan platforms
  • Oil‑impregnated bushing: self‑lubricating, low maintenance, smooth running
  • Capacitor‑start with 1.8μF, 400VAC capacitor
Output Power:
60W
Get A Quote
  • High Efficiency AC Electric Wall Fan Motor 3-Speed Capacitor‑Start
  • High Efficiency AC Electric Wall Fan Motor 3-Speed Capacitor‑Start
  • High Efficiency AC Electric Wall Fan Motor 3-Speed Capacitor‑Start
  • High Efficiency AC Electric Wall Fan Motor 3-Speed Capacitor‑Start
  • High Efficiency AC Electric Wall Fan Motor 3-Speed Capacitor‑Start
  • High Efficiency AC Electric Wall Fan Motor 3-Speed Capacitor‑Start

Description

Overview

The YKFANMOTOR wall fan motor is a capacitor‑start AC motor engineered for wall‑mounted household fans supplied into Southeast Asia and Middle East markets. With a practical three‑speed setup and an oil‑impregnated bushing structure, it is designed to support consistent rotation, stable airflow options, and reduced lubrication needs in daily household operation.

Three‑Speed Operation (Low / Mid / High)

This motor provides three selectable speeds:
  • Low: 650 RPM
  • Mid: 850 RPM
  • High: 1150 RPM

Oil‑Impregnated Bushing (Self‑Lubricating Design)

Oil‑bushing construction is commonly used in fan motors where stable running and reduced servicing are required. It helps:
  • support smoother rotation during long runtime
  • reduce wear under typical household use
  • lower the need for routine lubrication in normal conditions

Capacitor‑Start Configuration

  • Motor type: capacitor‑start AC motor
  • Capacitor: 1.8μF, 400VAC
If your fan design requires a different capacitor value due to load or speed target, we can align the configuration during OEM confirmation.

Specifications

Item Value
Product name Wall fan motor
Brand YKFANMOTOR (custom branding supported)
Voltage 220V AC
Frequency 50/60Hz
Rated power 60W
Speed 650 / 850 / 1150 RPM
Motor structure Oil‑impregnated bushing, capacitor‑start AC motor
Capacitor 1.8μF, 400VAC
Temperature rise ≤ 70K

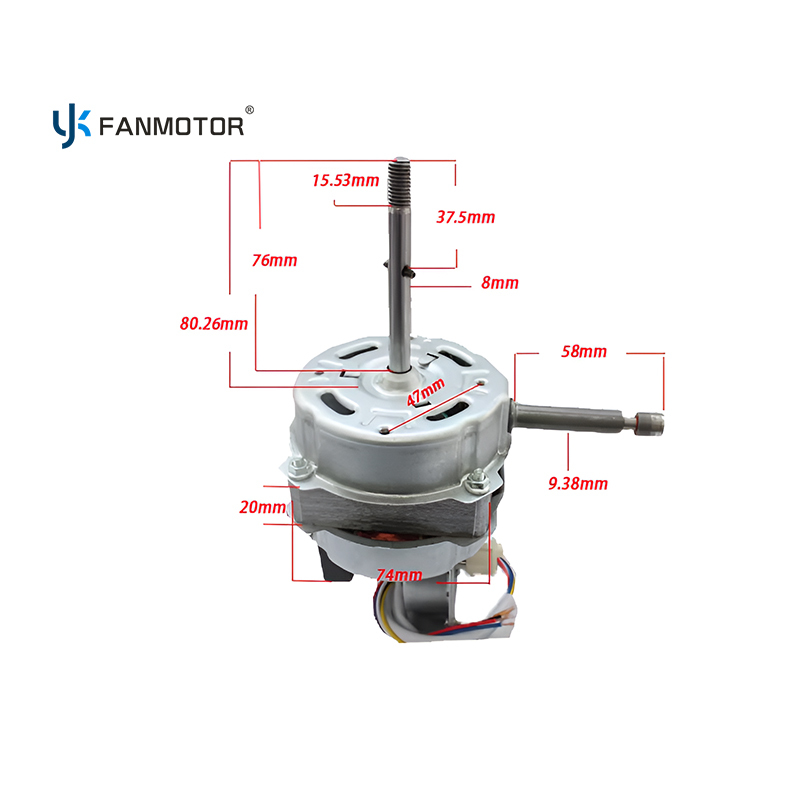

Stator size 74 × 20 mm (customizable)
Shaft 8 mm diameter
Winding options Copper / Aluminum / Copper‑clad aluminum (CCA)
OEM Drawings or samples accepted
Compliance CE/RoHS documents available on request; ISO factory system

Winding Options (How to Choose)
  • Copper winding: for stronger efficiency/thermal stability targets
  • Aluminum winding: for cost‑sensitive models
  • CCA winding: balanced option for cost and performance positioning

Tell us your target price segment and we’ll recommend the most suitable winding choice for your market.

Click here for one-stop answers

Contact us now to get detailed product specifications, customization options, the latest quotes, and free sample.

Applications

This AC wall fan motor is the perfect component for:Household Wall Fans, Commercial Ventilation, OEM Assembly, Aftermarket Replacement.

OEM / ODM Service

64x64We work with fan manufacturers and distributors to deliver consistent supply:
  • Send your requirements (voltage, frequency, speed levels, stator size, shaft length, mounting details) or provide a drawing/sample.
  • Confirm configuration and technical alignment.
  • Sample support (if needed).
  • Mass production and QC per agreed checklist.
  • Export carton packing and shipment.

Packaging & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Do you offer OEM customization?

Yes. We accept drawings or samples and can tailor key dimensions and configuration.

What is your MOQ and lead time?

MOQ is 2000 pcs. Typical lead time is 15–25 days, depending on specs and quantity.

Can I get a sample before ordering?

Yes, free sample is available; shipping cost is paid by the buyer.

Can you provide CE/RoHS documents?

Yes, available on request depending on your market and order requirements.
