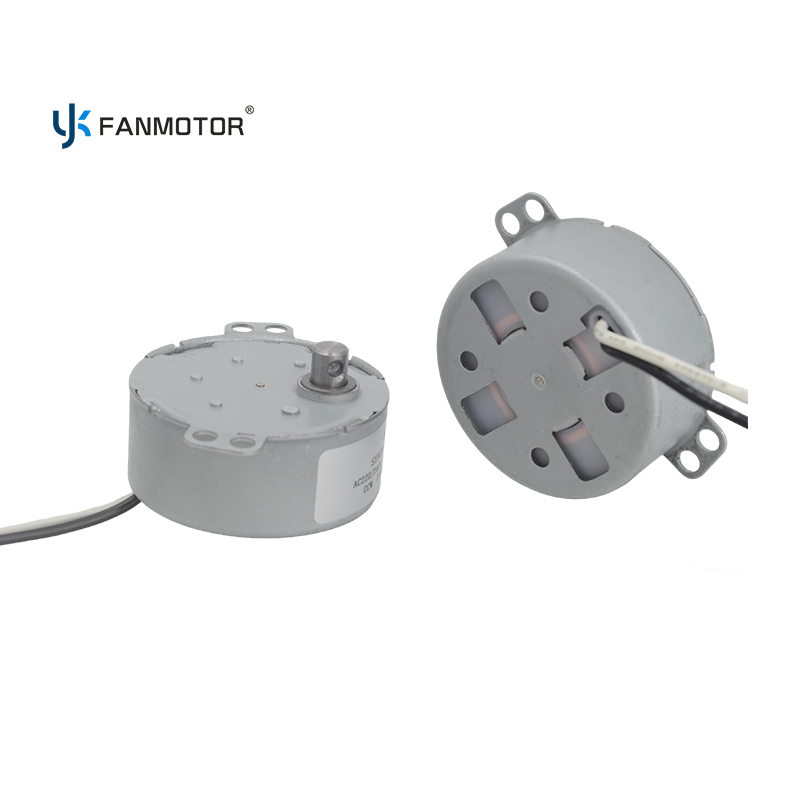

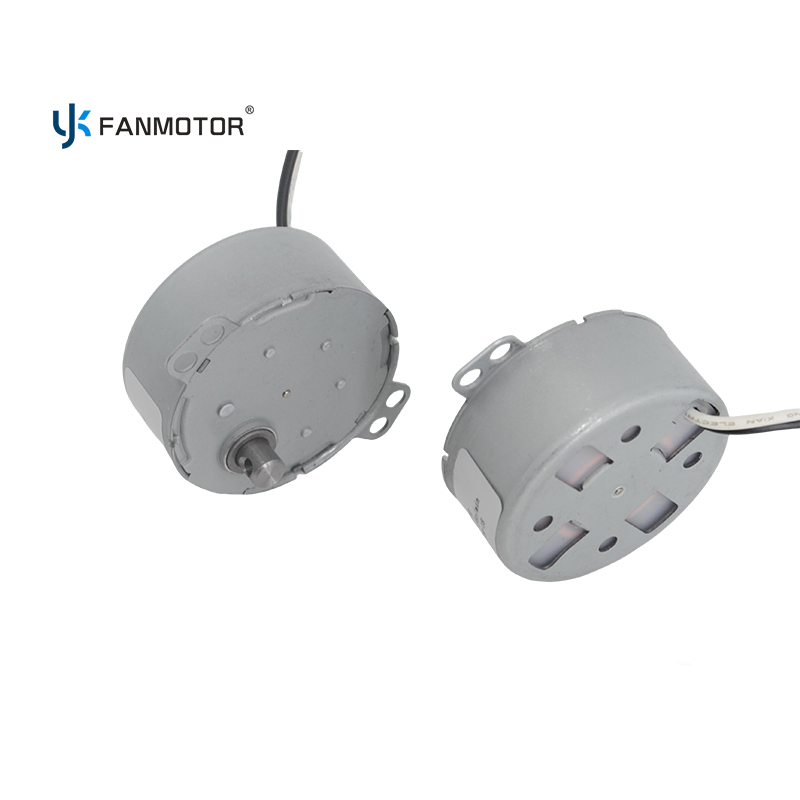

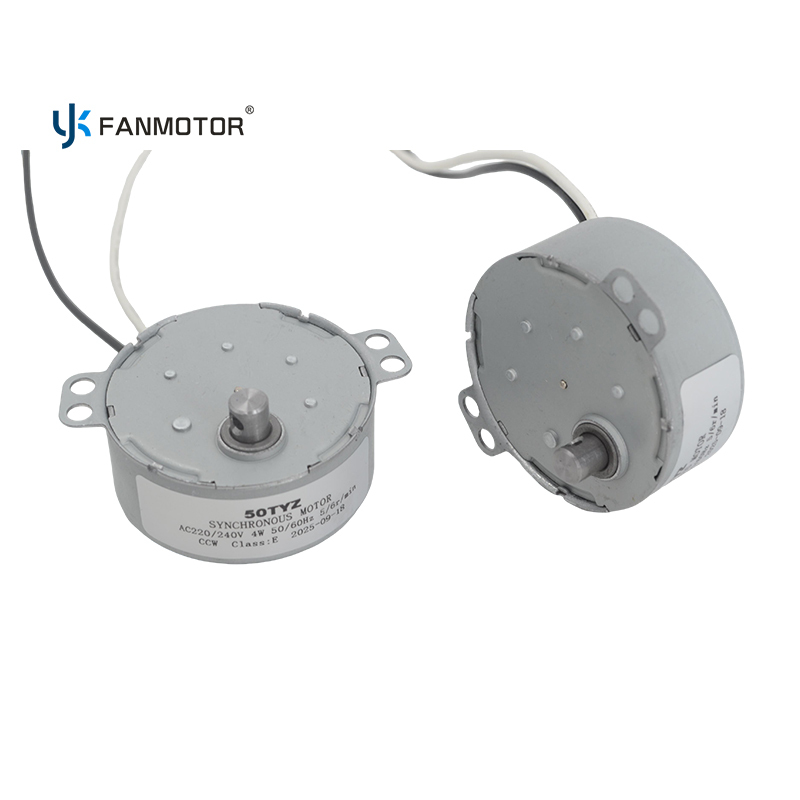

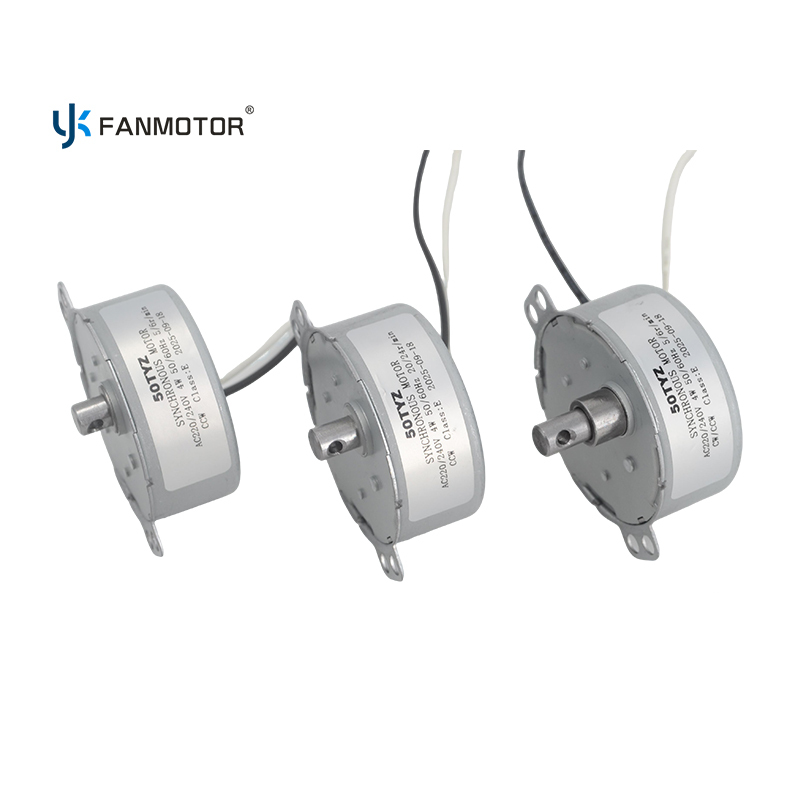

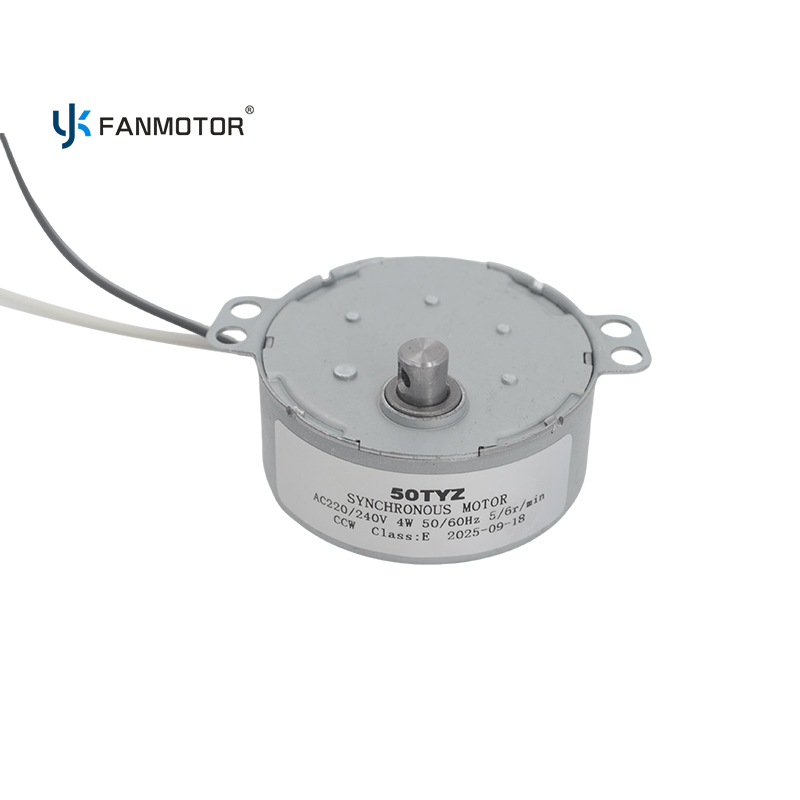

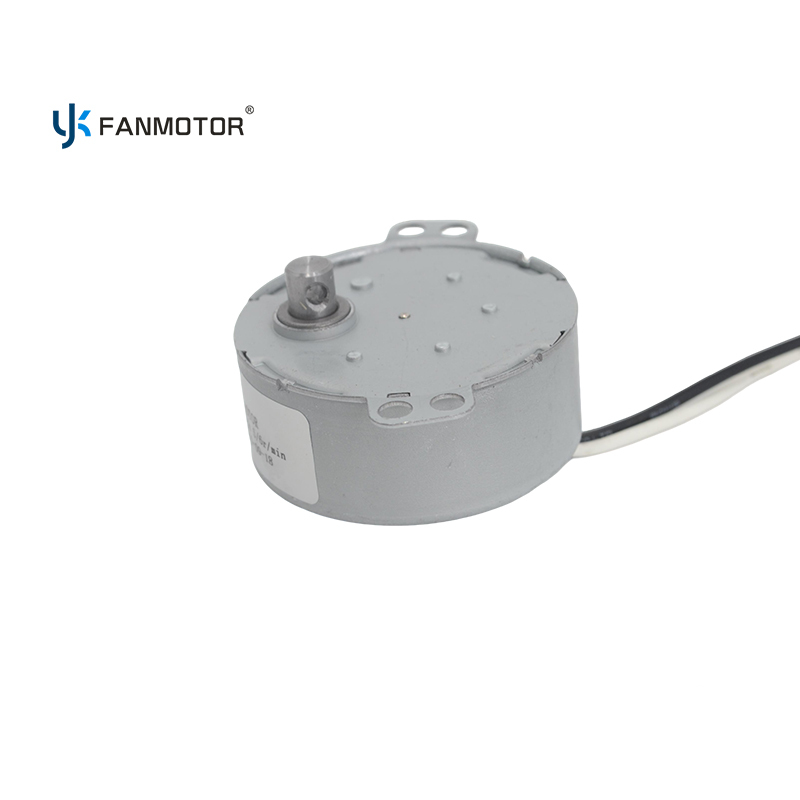

The Universal 50TYZ Mini AC Claw Pole Permanent Magnet Synchronous Motor is a high-quality, efficient motor designed for a variety of applications. With its compact size and reliable performance, it's an ideal choice for your equipment needs.
Stable Low-Speed Performance: Rated speed of 5/6 r/min, perfect for scenarios requiring precise, slow rotation without speed fluctuations.
Flexible Rotation Direction: Default CCW (counterclockwise), customizable to CW (clockwise) or reversible (CW/CCW) to match diverse equipment needs.
Safe & Quiet Operation: Explosion-proof design for use in flammable environments; noise ≤40dB, suitable for home/office appliances.
Technical Specifications
| Product Name | Claw Pole Synchronous Motor |
| Model | 50TYZ-1 |
| Type | Synchronous Motor |
| Phase | Single-phase |
| Voltage | AC 220/240V |
| Input Current | 25-500mA |
| Frequency | 50/60Hz |
| Rated Power | 4W |
| Insulation Class | Grade E |
| Rotation Direction | CCW (can be CW/CCW/CW) |
| Rated Speed | 5/6 r/min |
| Noise | Below 40 dB |
| Certification | CCC/CE/RoHS |
This mini motor is widely used in:
Contact us now for more information or to request a quote!FREE SAMPLE
As a leading fan motor manufacturer, we excel in producing high-quality AC motors for diverse applications:
Q: Is the 50TYZ motor compatible with both 50Hz and 60Hz frequency?
A: Yes, it supports a frequency range of 50/60Hz, making it suitable for use in different regional power grids.
Q: What insulation class does the motor have, and what does that mean for its use?
A: It has Grade E insulation, which allows it to withstand moderate temperature rises, ensuring safe and stable operation in common home and industrial environments.
Q: If I need customized motors, is that acceptable?
A: Yes, we accept OEM ODM customization. You can provide drawings, samples, or specific requirements, and our team will tailor the motor to your needs.
Q: How is the noise level of the motor controlled, and will it affect daily use?
A: The motor’s noise is ≤40dB, achieved through optimized structural design and precision manufacturing. It is quiet enough for home appliances like fans and air purifiers, without disturbing daily life.
Q: If there is a quality issue within the warranty period, how is it resolved?
A: Once a quality issue is confirmed within the 3-month to 1-year warranty period, we will provide free parts replacement or repair services, and cover the related logistics costs if necessary.
