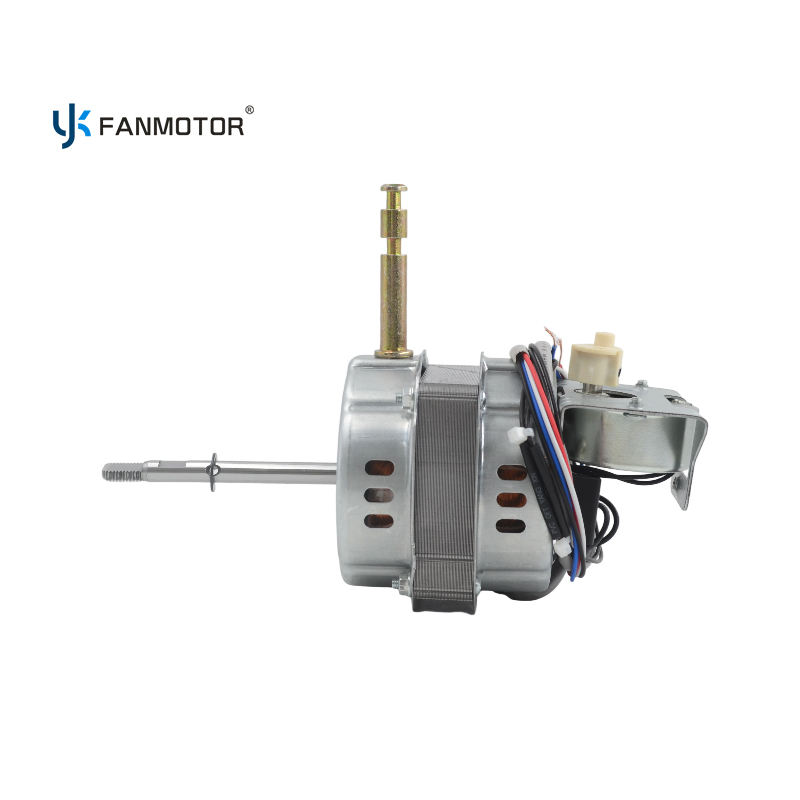

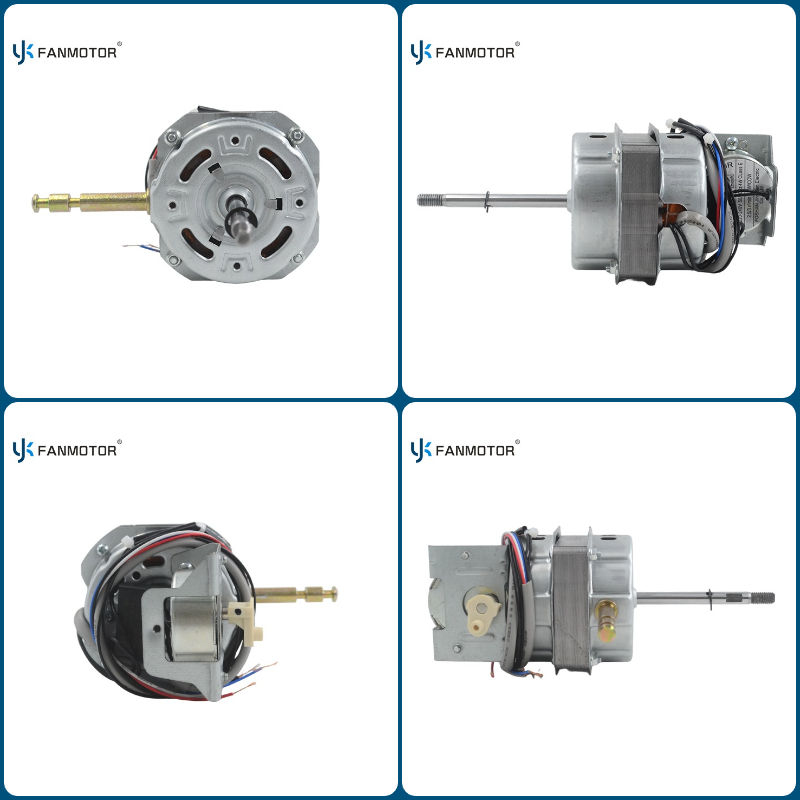

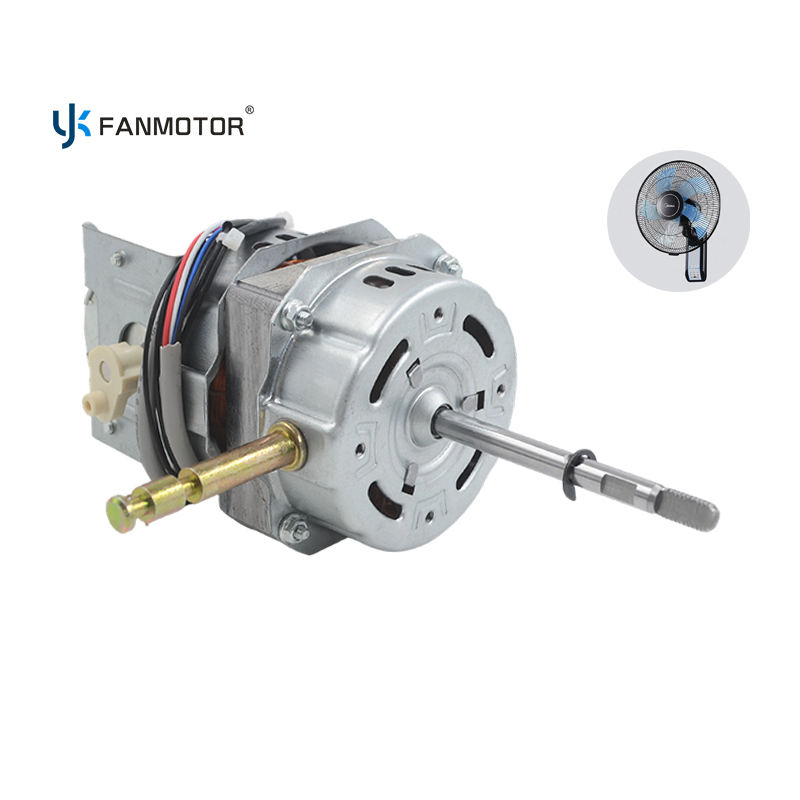

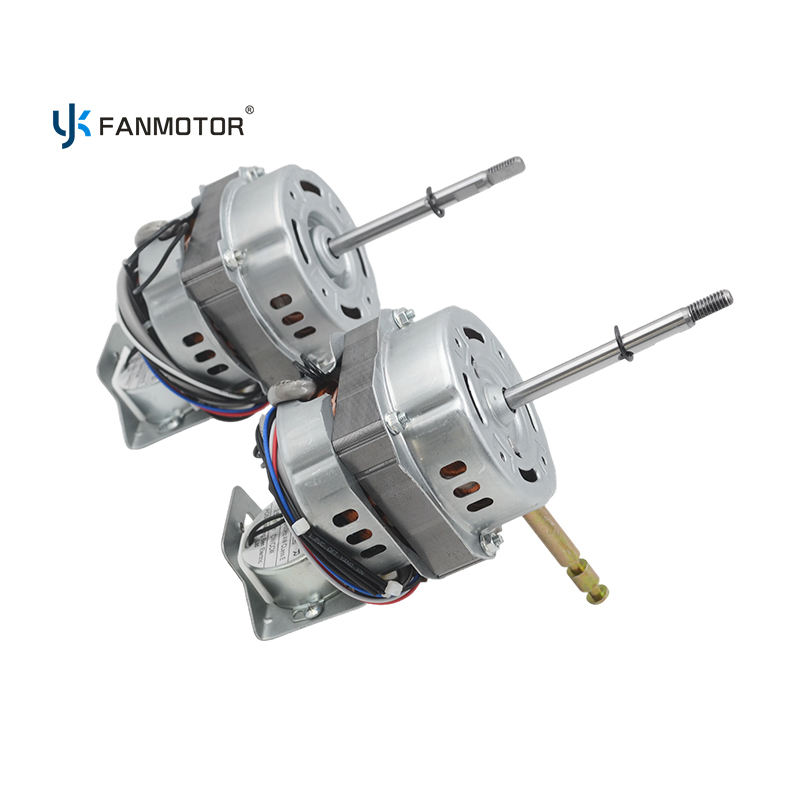

Product Overview
Upgrade your fan products with the high-performance YKFANMOTOR 7420 Series Fan Motor—engineered for durability, energy efficiency, and versatile application. Suitable for commercial, household, and industrial use, this motor is designed to power wall fans, table fans, and stand fans, delivering reliable cooling performance with long-lasting construction. As a RoHS, CE, and ISO-certified product, it meets global quality standards, making it a trusted choice for manufacturers and distributors worldwide.
Key Features
- Energy-Efficient Operation: Reduces energy consumption significantly, helping end-users save on electricity costs while maintaining powerful airflow.
- High-Performance Cooling: Delivers 45W-60W adjustable output power, ensuring strong and consistent airflow for effective temperature regulation.
- Long-Lifespan Design: Crafted with durable materials including C45# steel shaft, silicon steel stator, and oil-impregnated sintered bearings, ensuring stable performance over years of use.
- 3-Speed & Oscillation Control: Equipped with an independent synchronous motor (2.5/3 RPM, 4W) for precise oscillation control, replacing traditional mechanical levers. Supports low/medium/high speed adjustment via multi-color wiring compatible with remote control circuit boards.
- Customizable Specifications: Flexible size options (standard 74*20mm, customizable) and material choices (minimum order 3000 pieces) to fit various fan designs and requirements.
- Superior Heat Dissipation: Classic four-corner bolt fixing structure with multiple shell heat dissipation holes, preventing overheating during long-term operation.
- Easy Installation & Compatibility: Multi-colored wire harnesses fixed with cable ties, compatible with most fan control systems for hassle-free integration.
 |
 |
 |

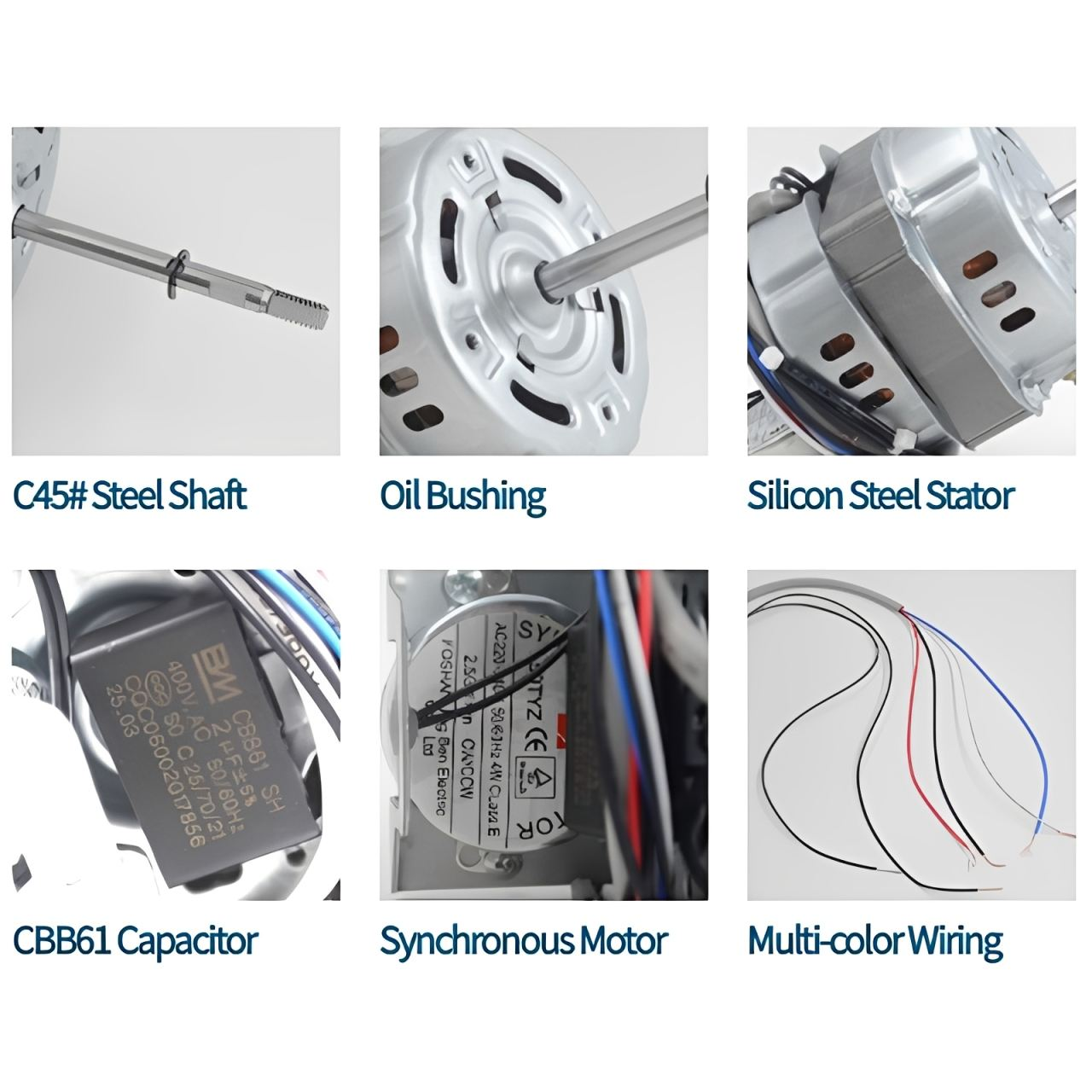

| C45# steel shaft |
Oil bushing |
Silicon steel stator |
 |
 |
 |
| CBB61 capacitor |
Synchronous motor |
Multi-color wiring |
Technical Specifications
| Specification |
Details |
| Product Name |
Wall/Table/Stand Fan Motor |
| Brand |
YKFANMOTOR |
| Model Series |
7420 Series |
| Rated Voltage |
220V-240V AC (Custom 110V-230V available) |
| Frequency |
50Hz/60Hz |
| Output Power |
45W-60W (Adjustable) |
| Stator Size |
74*20mm (Customizable) |
| Winding Material |
Aluminum Wire (Cost-effective & high-performance) |
| Bearing Type |
Oil-Impregnated Sintered Bearing (Self-lubricating) |
| Rotation Direction |
CW/CCW (Clockwise/Counterclockwise) |
| Insulation Class |
Class E / Class B |
| Speed Control |
3-Speed (Low/Medium/High) |
| Oscillation Control |
Synchronous Motor (2.5/3 RPM, 4W) |
| Certifications |
RoHS, CE, ISO |
| Warranty |
2 Years |
| After-Sales Service |
Free spare parts, defective product replacement/refund, online technical support |
Application Scenarios
Ideal for powering:
- Household fans (table fans, stand fans, wall fans)
- Commercial cooling equipment (office fans, restaurant fans)
- Industrial ventilation systems (workshop fans, warehouse cooling fans)
- Custom fan projects requiring reliable motor performance
Why Choose YKFANMOTOR?
- 28 Years of Expertise: Manufactured by Guangzhou Yuexun Electric Appliance Co., Ltd.—a professional motor manufacturer with R&D, production, and sales integration.
- Strong Production Capacity: 13,000㎡ factory, 60+ technical craftsmen, and 10,000 units daily production capacity ensure timely delivery.
- OEM/ODM Support: Accepts sample/drawing-based customization (MOQ 1000pcs for most motors; 3000pcs for material customization). Free samples available (shipping fee paid by buyer).
- Quality Assurance: Strict quality control processes, including stator testing, high-temperature testing, and precision assembly.
- Flexible Payment & Shipping: Supports T/T, L/C, and so on. Shipping terms negotiable based on order quantity.
FAQs
- Q: What voltage/frequency options are available?
A: Standard 220V-240V AC, 50Hz/60Hz. Custom 110V-230V options available upon request.
- Q: Do you provide free samples?
A: Yes, free samples are offered (buyer covers shipping). Sample lead time: 5-10 working days.
- Q: What is your after-sales policy?
A: 2-year warranty. Defective products will be replaced or refunded for free. Online technical support is available 24/7.
- Q: Can I place an OEM/ODM order?
A: Yes, we support full customization based on samples or drawings. MOQ is 1000pcs for most motor types.
Contact Us
Ready to enhance your fan products with a reliable, energy-efficient motor?
Contact us today for a custom quote, technical support, or to discuss your OEM/ODM requirements.
Supplier: Guangzhou Yuexun Electric Appliance Co., Ltd.
Business Scope: R&D, production, and sales of motors & motor parts for fans, air conditioners, fryers, ovens, range hoods, atomizers, etc.
Certifications: RoHS, CE, ISO Quality Management System Certification
Email: grace@ykfanmotor.com
WhatsApp: 86-13710592354
We look forward to becoming your trusted motor supplier with our precise technical solutions, strict quality control, and comprehensive after-sales service.
