Strong adaptability:
The customizable stator size can perfectly match the 16-inch table fans of different designs to meet diverse needs.
Flexible material selection:
A variety of winding materials are available, taking into account performance and cost, and users can choose as needed.
Voltage compatibility:
It can adapt to different voltage standards and is not restricted for use at home and abroad.
Smooth operation:
The specific capacitor configuration ensures stable motor current and smooth and reliable operation.
Diverse wind speeds:
Three-speed wind speed adjustment can meet the personalized needs of wind speed in different scenarios.

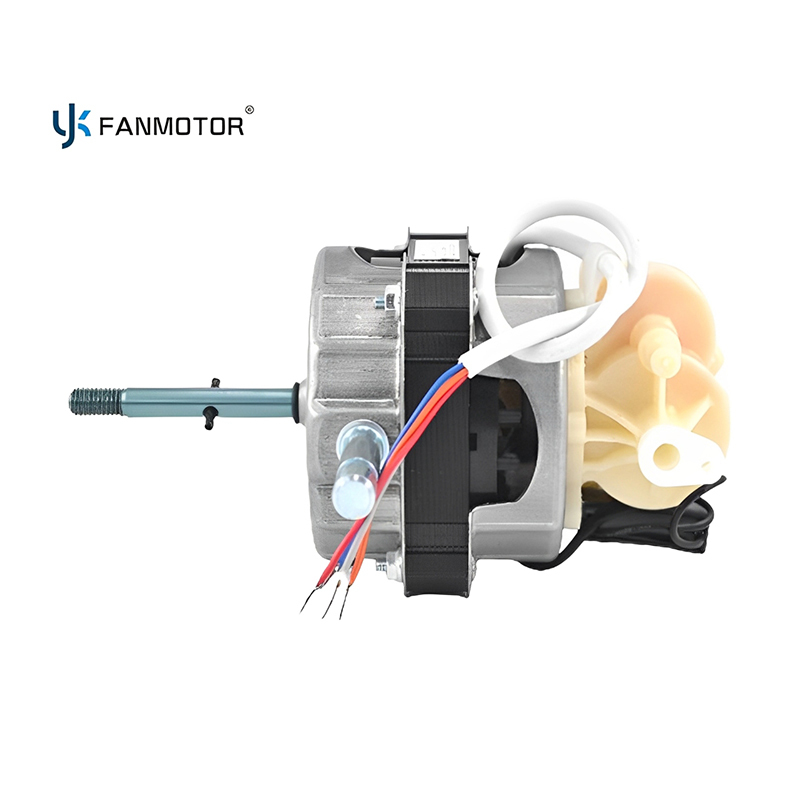

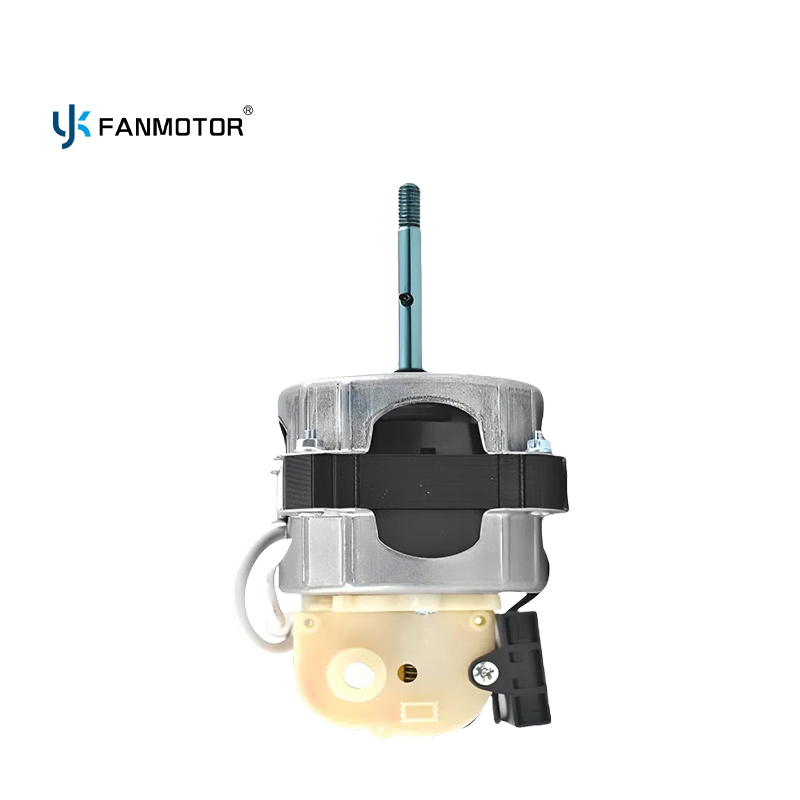

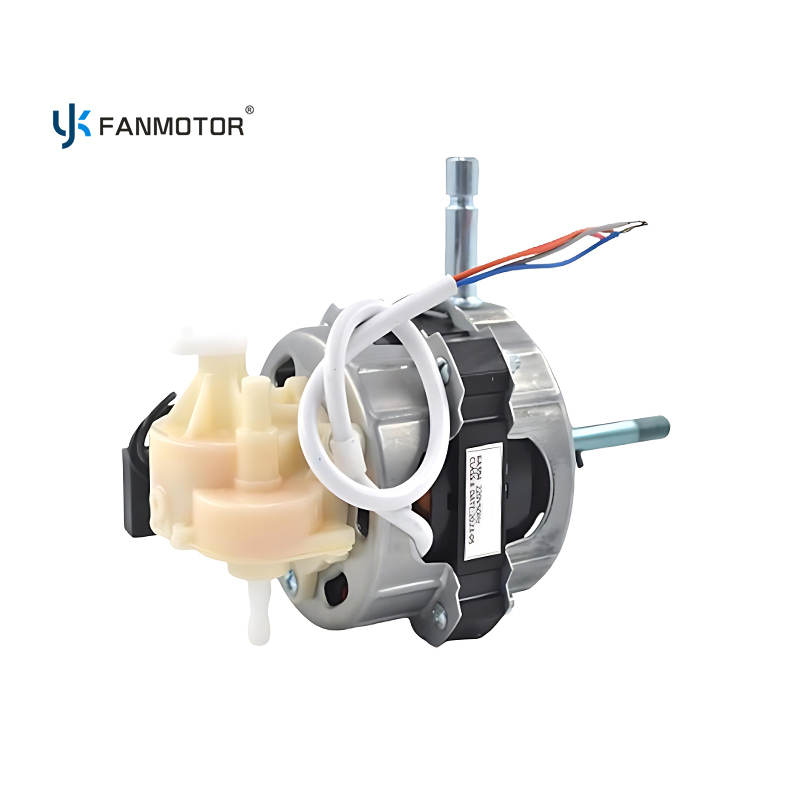

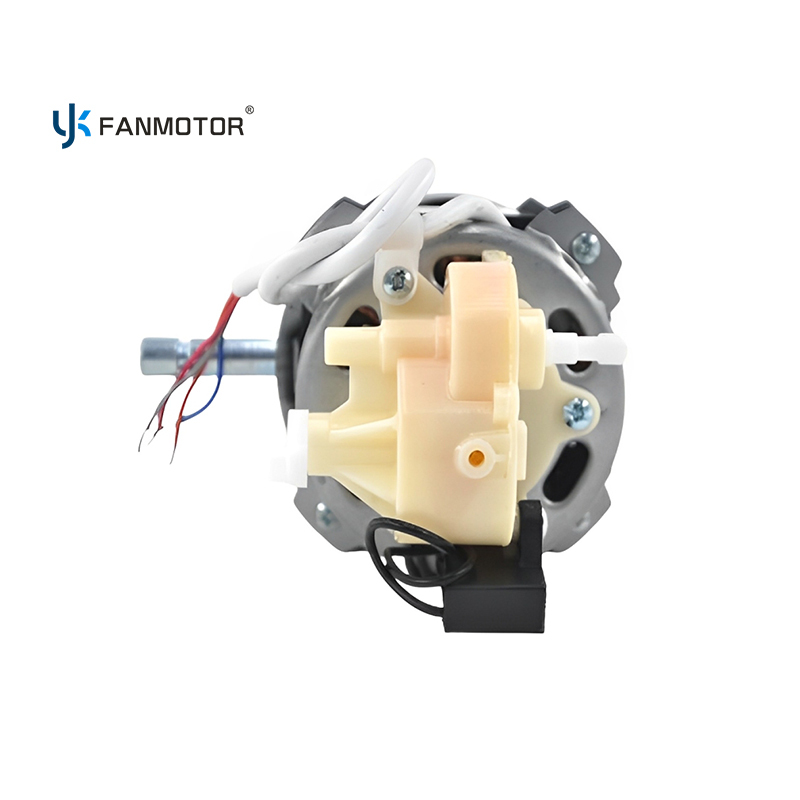

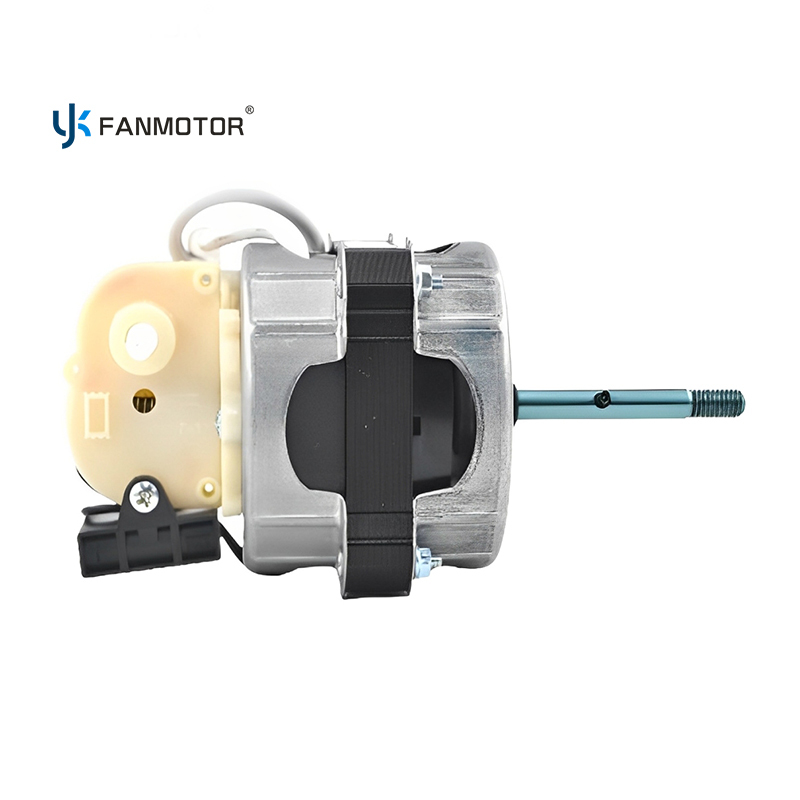

This is a 16-inch double ball bearing pedestal stand table fan motor with a stator size of 71*16mm and supports customization. The main winding material is pure copper wire, and aluminum or CCA material options are also available. It can adapt to different voltage standards, is equipped with a 1.8uf/450VAC capacitor, and has a three-speed wind speed adjustment function.
|
Parameter Name |
Parameter Value |
|---|---|
|
Item |
16 inch stand table fan motor |
|
Stator size |
78*78*16mm |
|
Stator material |
Silicon steel 1300 black stator |
|
Wire winding material |
Pure copper wire winding |
|
Voltage |
110-220V |
|
Frequency |
50/60Hz |
|
Insulation level |
Class E |
|
Capacitor |
1.5uf/400V |
|
Shaft |
With color anti-rusty oil |
|
Speed |
3 Speed |
