Safe and worry-free:
The explosion-proof protection function effectively prevents the risk of explosion caused by electrical failure, providing users with reliable safety protection.
Widely adaptable:
It is compatible with 220V - 50Hz and 110V - 60Hz voltage frequencies, easily adaptable, stable power supply, and meets the needs of users in different regions around the world.
Efficient and stable:
The double ball bearing design significantly reduces the friction during motor operation, and with reasonable power and capacitance, the motor starts quickly, runs smoothly and efficiently.
Precise swing head:
The built-in synchronous motor can accurately control the swing head angle and speed of the wall fan to achieve uniform and regular swing.

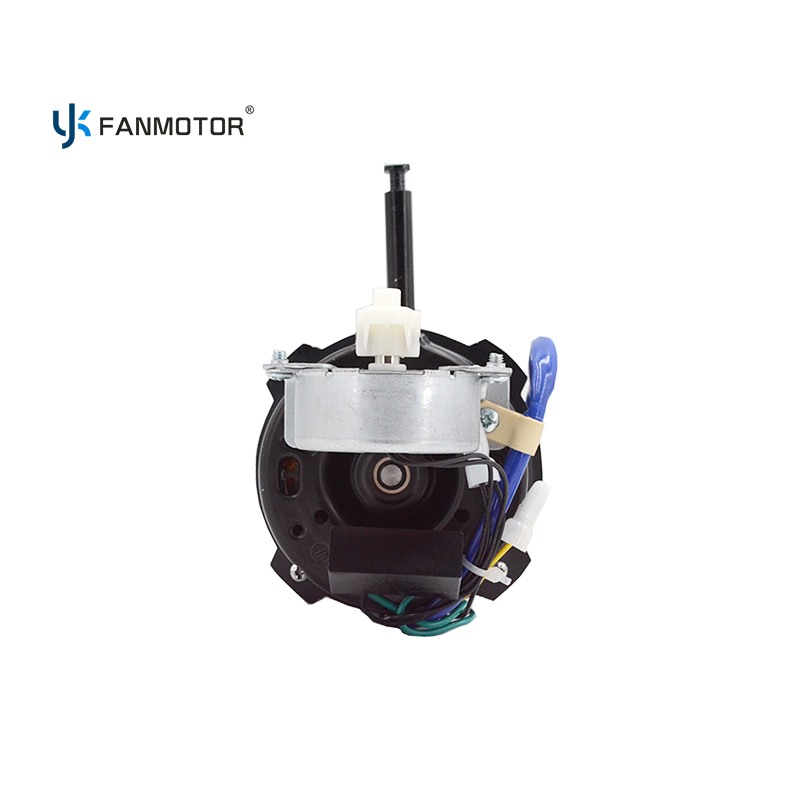

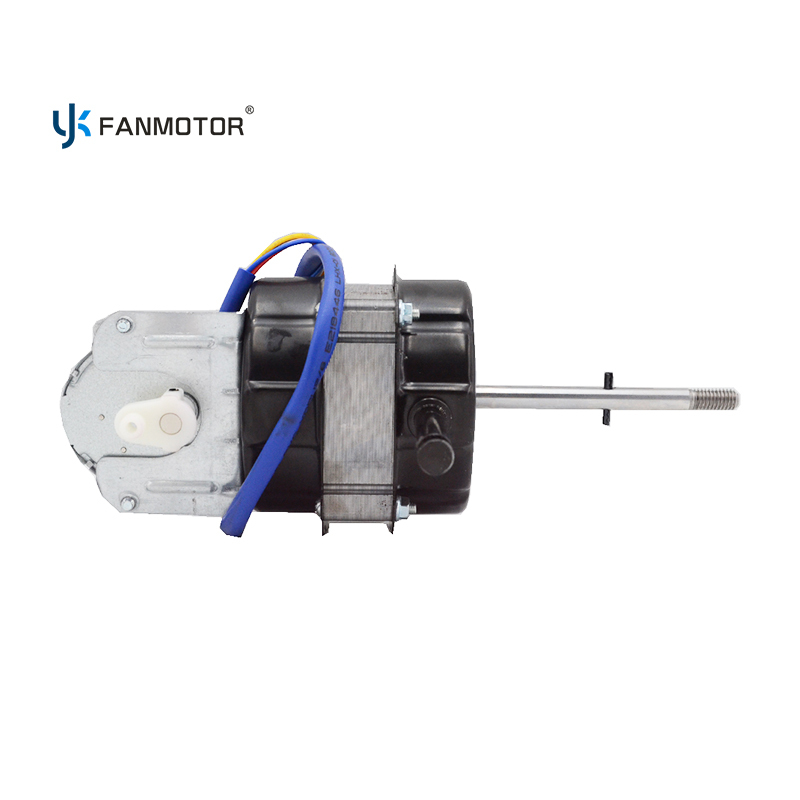

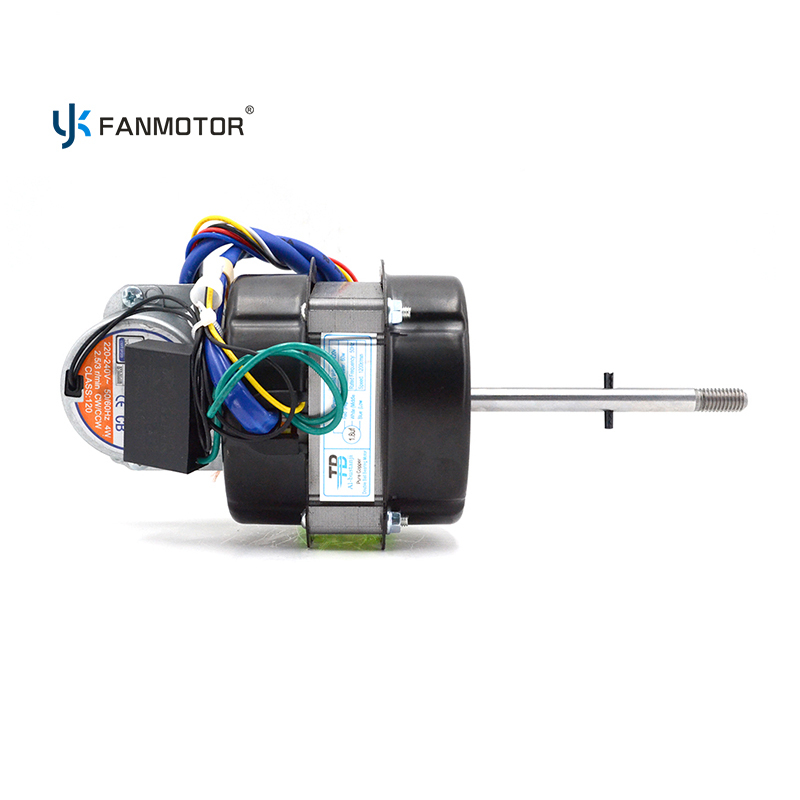

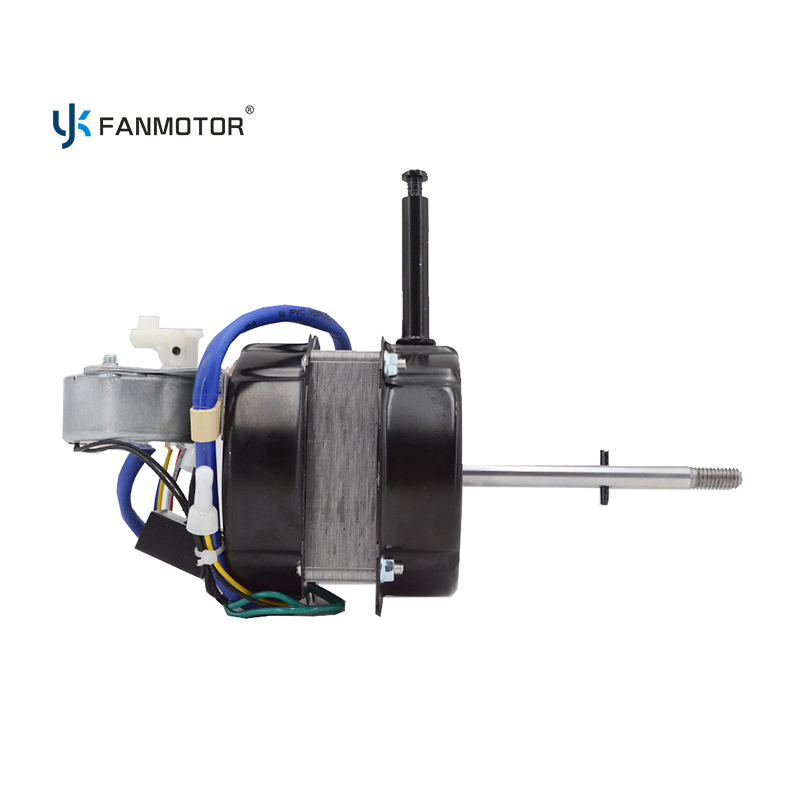

This is a motor specially designed for 16/18 inch oscillating wall fans.
It adopts single-phase asynchronous motor type with double ball bearings, which is stable and durable and adapts to common power environments.
The motor is equipped with a synchronous motor to accurately control the swing head movement to achieve a wider and more uniform air supply.
The stator thickness is 18mm, combined with a 1.8uf/450VAC capacitor, to ensure the efficient and stable operation of the motor, and continuously provide strong power for the wall fan at a speed of 1200r/min.
|
Parameter Name |
Parameter Value |
|---|---|
|
Product name |
16/18 inch oscillating wall fan motor |
|
Type |
Asynchronous Motor |
|
Bearing |
Double ball bearing |
|
Phase |
Single-phase |
|
Frequency |
220V-50Hz/ 110V-60Hz |
|
Power |
35-60W |
|
Protect Feature |
Explosion-proof |
|
Stator thickness |
18mm |
|
Capacitor |
1.8uf/450VAC |
|
RPM |
1200r/min |
|
Feature |
With synchronous motor |
