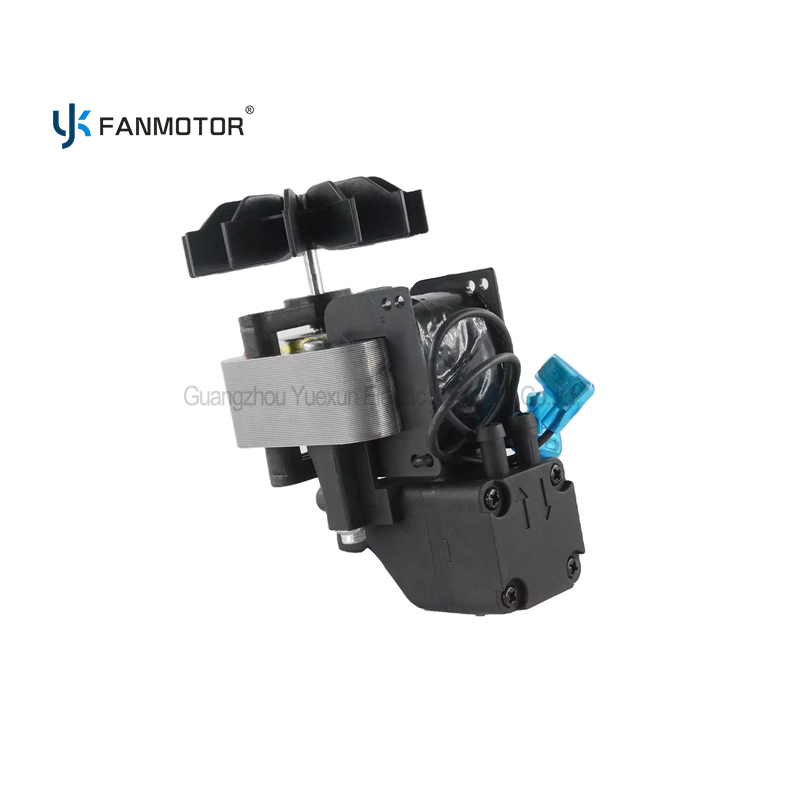

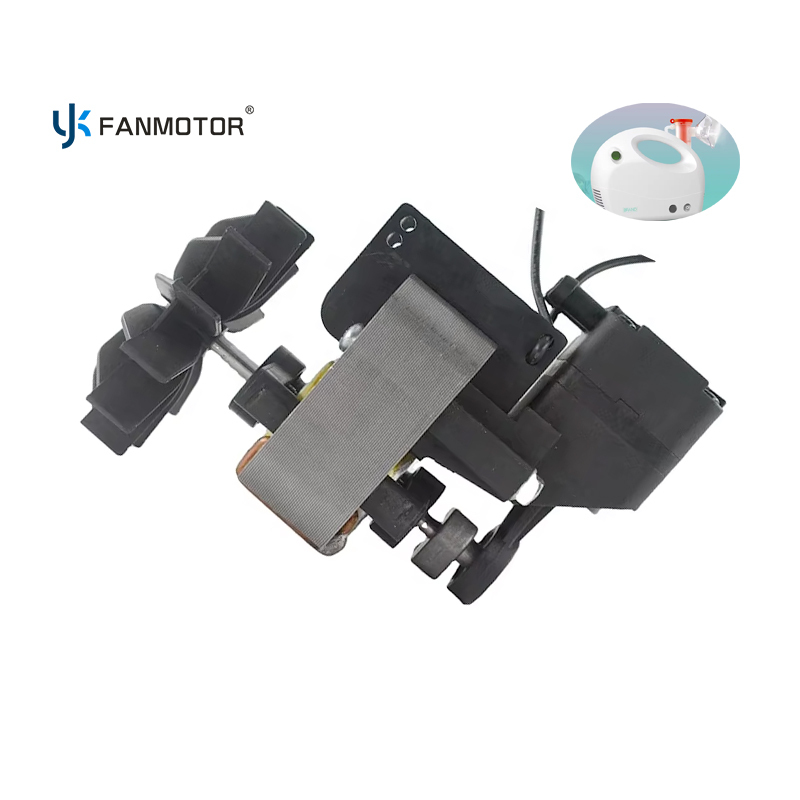

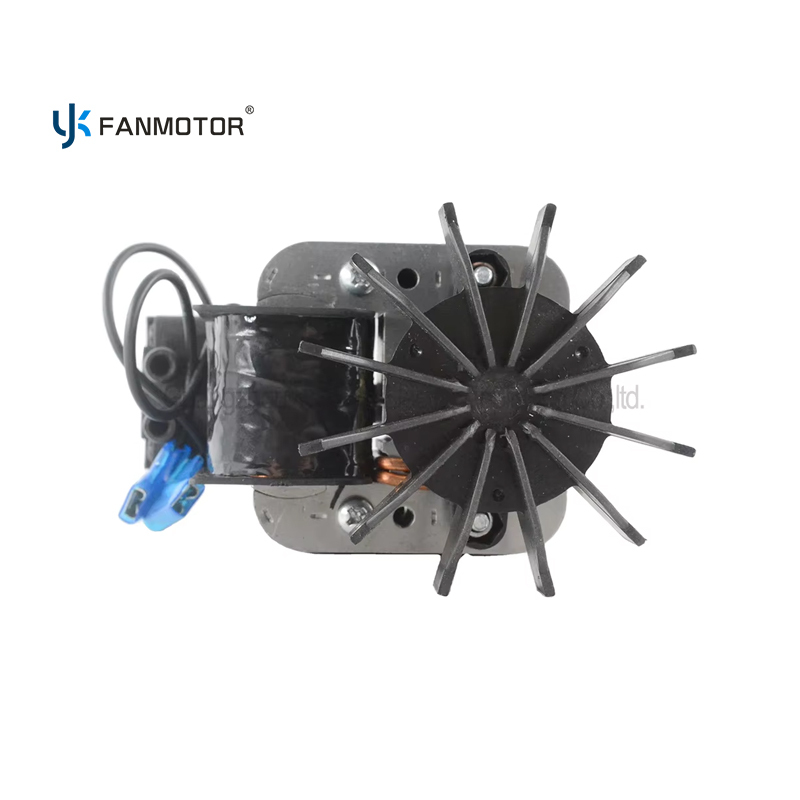

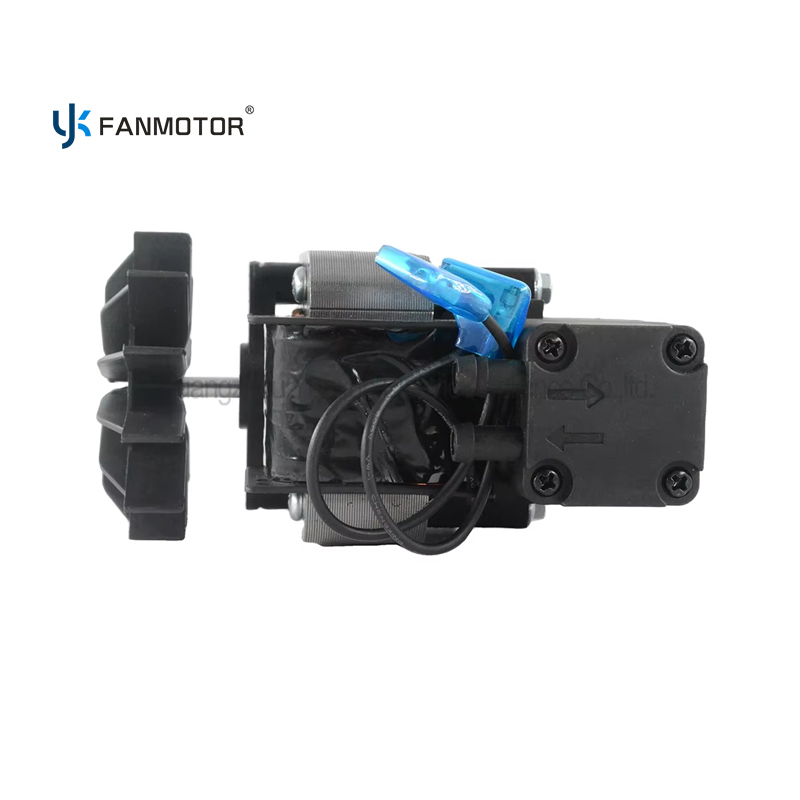

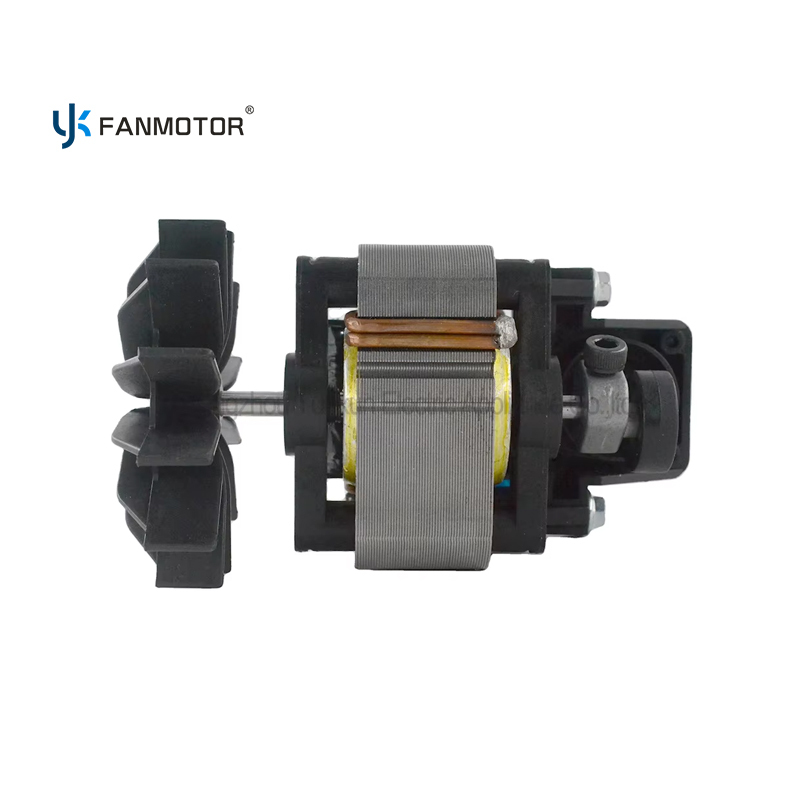

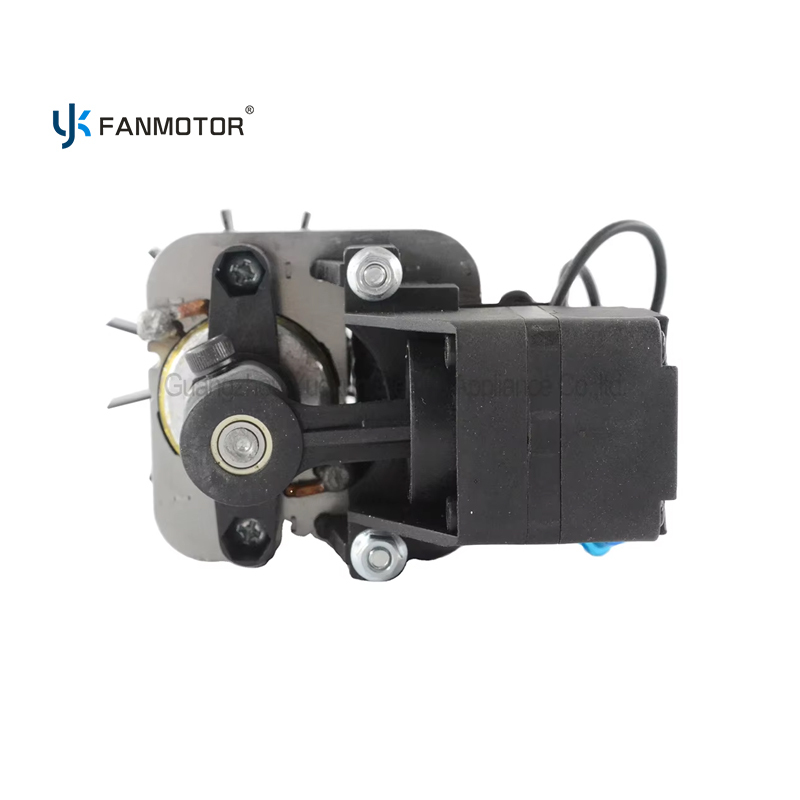

YKFANMOTOR YK6225 Medical Nebulizer Compressor Motor
Low-Noise, High-Efficiency Core Power for Compressor Nebulizers – Compliant with Global Medical Standards
Low-Noise Operation
Adopts advanced double ball bearing structure and precision machining, controlling noise to ≤45dB. Creates a quiet treatment environment, ideal for noise-sensitive groups like the elderly and children. |
IE 4 High Efficiency
Reduces energy consumption by 15-20% compared to standard motors, lowering long-term electricity costs. Meets global green environmental protection trends while alleviating economic burdens for users. |
Super Durability
High-carbon chromium steel bearings support 20,000+ hours of continuous operation. IP40 protection + explosion-proof design, B-H insulation class, adapting to harsh medical environments. |
||
Flexible Customization
Standard stator size 62*25mm, supports customization of dimensions, power, and voltage. Samples available in 7-10 workdays, meeting diverse equipment adaptation needs. |
||||
| Item | Specification | Item | Specification |
| Model Number | YK6225 | Rated Power | 40-65W |
| Brand | YKFANMOTOR | Rated Speed | 2800 RPM |
| Motor Type | AC Shaded Pole Motor | Voltage | 110-230V |
| Protection Class | IP40 | Frequency | 50/60Hz |
| Phase | Single-phase | Insulation Class | B-H |
| Stator Size | 62*25mm (Customizable) | Certification | RoHS, CE |
| Wire Material | Copper / CCA / Aluminum | Warranty | 2 Years |
| Poles | 2 Poles | Application | Piston Compressor Nebulizer |
| Protection Feature | Explosion-proof | Mounting Type | Housing |
| Get Your Medical-Grade Nebulizer Motor Solution Now Whether you are a medical device manufacturer, distributor, or enterprise customer with customization needs, YKFANMOTOR YK6225 can provide efficient, reliable, and safe power support. Contact Us for Custom Quote |
